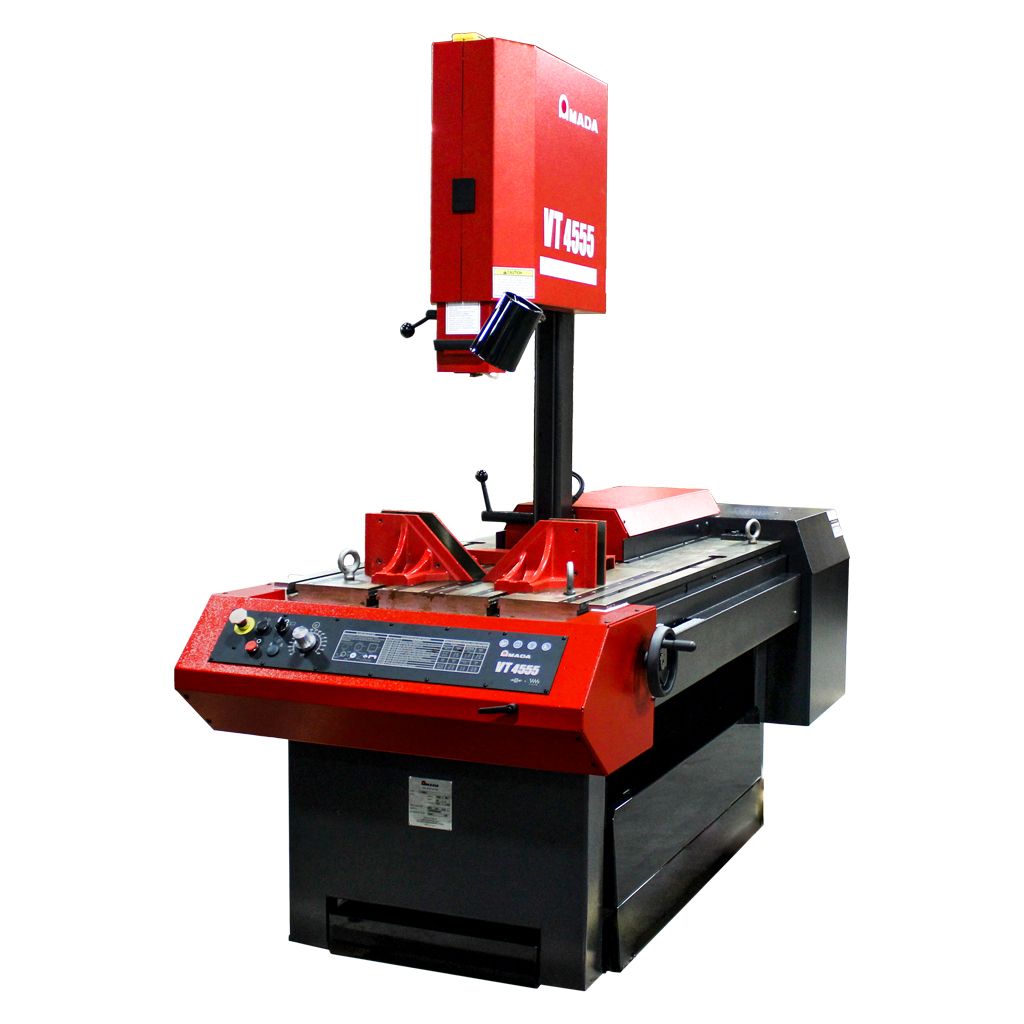

Amada VT4555 (Mark-II)

VERTICAL TILT-FRAME SAW

• 5 H.P.
• 1″ Blade
• Marvel Series (8-Mark-II)
• All-Mechanical Design
• Cast Iron Construction
• Metal Cutting
• Large Adaptable Work Table

FEATURES

• Front Mounted Speed Control

Allows blade speed to be adjusted from the operator’s control station.

• T-Slotted Work Table

Work area 24.25” x 33” (616 mm x 838 mm); table height 34.5” (876 mm); four machined T-slots accept .625” (15.5 mm) T-Bolts.

• 0 – 3° Canted Column

The canted Column is not adjustable and is available in either 0° or optional 3° Cant.

• Miter Cutting

Column and blade tilt up to 45° right and left.

• Quick Action Vice

Maximum opening 18” (457 mm). Jaws can be shifted to either right or left side of the blade. Jaws are 6” (152 mm) high, 12” (305 mm) wide.

• Flushing Hose

Washes chips from hard to get at places reducing clean-up time.

• Power Chip Brush

Together with blade wipers and flood coolant deep blade teeth free of chips.

• Eagle Beak VTR Blade

Eagle Beak VTR blade with 3/6 tooth pitch. This is the standard blade that is included with machine purchase.

230V 3Ph in Stock

Contact us for Details
