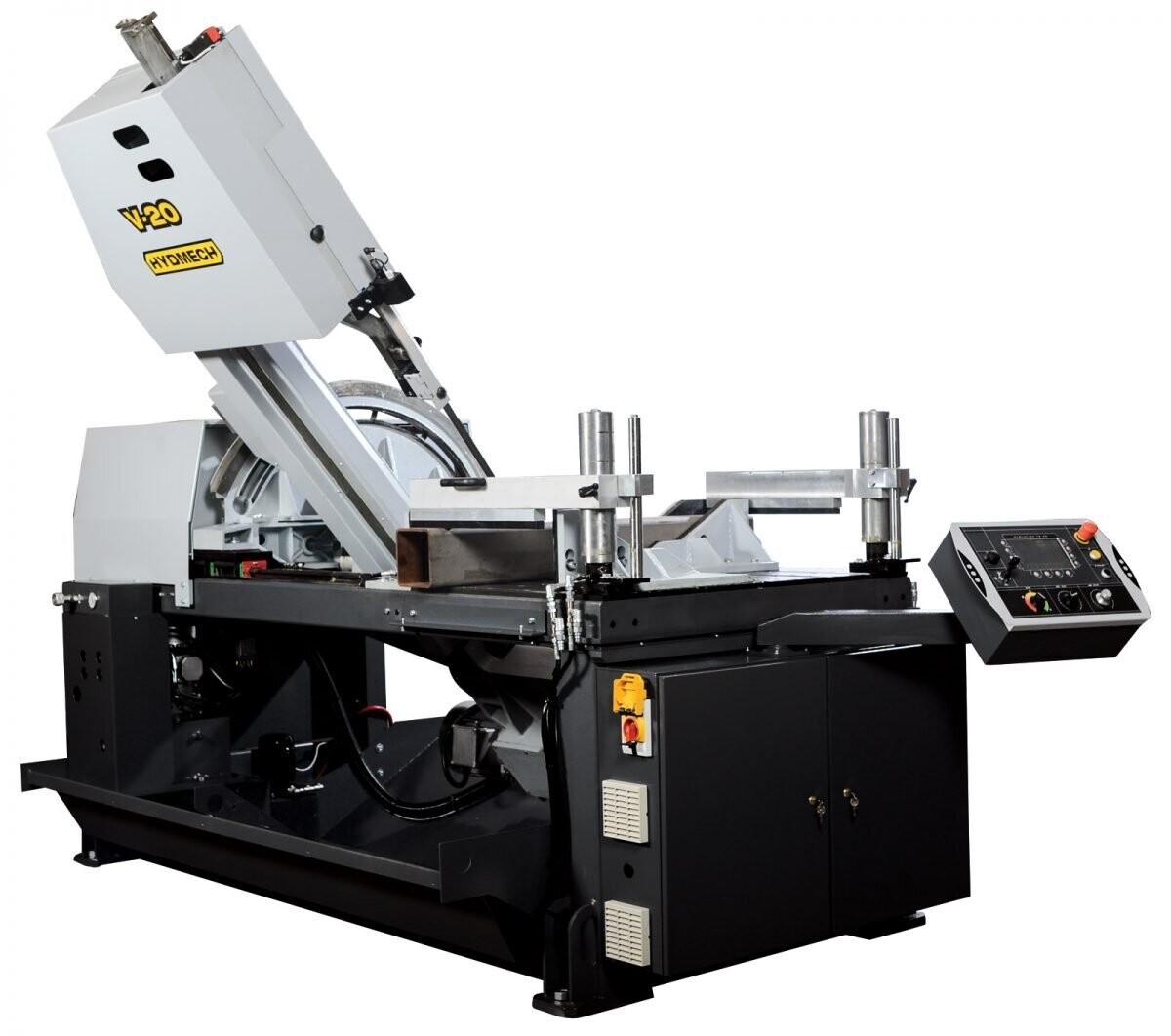

Hydmech V20
$0.00
In stock
Product Details
Semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.
This machine’s 4 degree forward approach angle allows for more efficient cutting and improved blade life when cutting larger beams, structural steel, and bundles of square tubing.
Featuring a large 25″H x 20″W capacity, 10 HP motor, and 1 1/2″ blade, the V-20 is a reliable choice for all your vertical metal cutting applications.
STANDARD FEATURES
- 4° canted head allows for efficient cutting and improved blade life
- Cast iron, torsion free saw head provides durability, stiffness, and absorbs vibrations
- On-demand hydraulics save energy
- High efficiency, constant torque electric ball screw feed system
- Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
- Semi-automatic touch screen NC controller
- Two full stroking hydraulic vises
- Electronic ball screw powered, guide arm
- 10 HP VFD. True direct blade drive – no belts/pulleys
- Cast iron band wheels
- Replaceable blade brush
- Robust steel base
