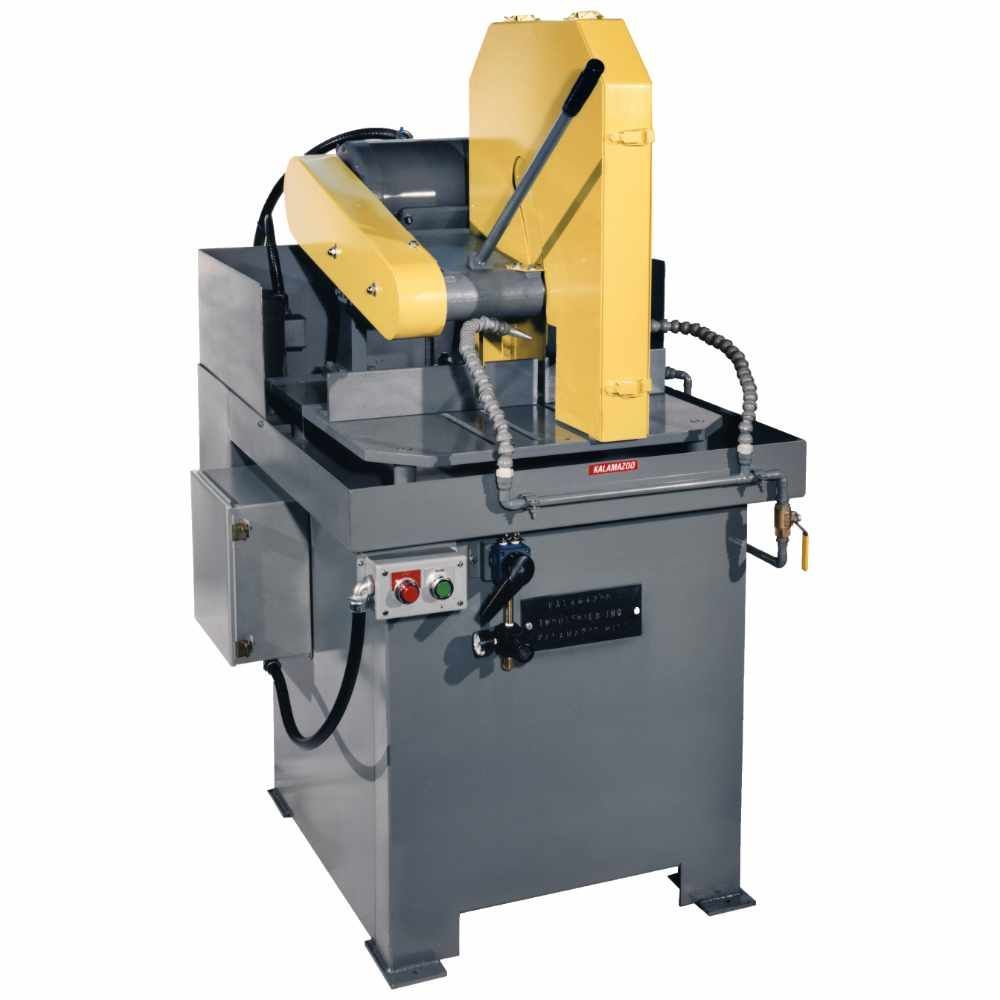

Kalamazoo Industries K20SW 20" Wet Abrasive Saw
The K20SW 20-inch wet abrasive cutoff saw is a powerful and versatile straight saw, capable of cutting various materials, including steel, stainless steel, and cast iron, at a 90° angle. It features a 20″ abrasive cutting blade that can make fast cuts with minimal heat distortion. This wet metal cutting saw also has a built-in recirculating pump and flood coolant system that helps to cool the wheel and material, preventing the workpiece from overheating. This makes it ideal for cutting tough materials that would otherwise be difficult to work with. Additionally, the saw is perfect for metal inspection and efficient cuts, thanks to its straight saw design.
Motor and Controls
- Motor: 15 HP 3PH motor wired for 220V or 440V (specify voltage at the time of order)
- Controls: Magnetic controls, 24V at the on/off push buttons
Cutting Specifications
- Abrasive Wheel Size: 20″
- Material Capacities: 4″ solid bar and 6″ shapes (mild steel)
- Spindle Arbor Size: 1″
- Spindle Speed: 1,950 RPM
Construction
- Arm: Cast iron arm
- Trunnion: Single cast iron trunnion
- Base: Steel base with a three-sided shroud
Coolant System
- Type: Flood coolant system
- Components: Steel coolant tank and industrial coolant pump
- Nozzles: Flexible coolant flair nozzles controlled with a ball valve
Vise and Drive
- Vise: Air chain vise (shop air required)
- Drive: V-belt driven with replaceable steel v-belt guard
Operation and Shipping
- Operation Type: Manual operation
- Shipping Weight:
- 15HP machine: 1400 lbs.
- 20HP machine: 1475 lbs.
- Shipping Dimensions: L 53″ x W 73″ x H 74″ (subject to change)
- Country of Origin: MADE in USA
