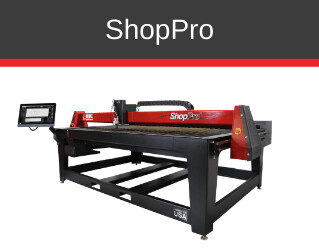

Koike Shop Pro Plasma Cutting Machine

The Koike Aronson ShopPro­™ is the company's newest value-priced, made in America high performance cutting system, offering fabricators premium features in a package compact enough to fit in small shops. Ruggedly built, the ShopPro™ has the same reliability and accuracy found with all Koike Aronson cutting systems.

The ShopPro™ was developed with the help of feedback of fabricators and metal workers, who demanded a robust feature set at a reasonable price.

Features | Standard Equipment

Water table has curved slats to help make loading of material easier. Plate can be placed on table and pushed into place. Ideal for locations with no overhead crane access and it reduces floor space requirements.

Dual Side Drive With Precision Ground Linear Bearings provides smooth and accurate motion.

Precision Helical Gearboxes with NEMA 34-Stepper motors.

Helical Gear Rack with AGMA 12 grade ground pinions.

Emergency Stop Button is located on each saddle to quickly and safely shut off machine motion and cutting process, including oxy-fuel gases to the torches.

All-in-One Motion Controller with 21 inch Monitor

▪ PRO Version Software package
▪ On-board completely integrated FlashCut 2D CAM/CAD package
▪ True shape nesting
▪ Customizable cut charts
▪ Customizable default lead-in, lead-out strategies
▪ Silhouette image import
▪ DXF/DWG import
▪ Tabbing of part
▪ Overburn support
▪ Marker and Plasma Marking
▪ DXF Export
▪ Advanced text including true type font support without
exploding and curved text around any shape
▪ Part shading
▪ 3D cutting simulation

ShopPipe™ option for the ShopPro™

Patent Pending

Incorporates easy to use software, easy setup and low maintanance mechanicals that are built to withstand the harsh work environment. A fold-down head design saves space and makes it easy for existing customers to upgrade. The direct drive system with chuck precisely rotates the pipe, unlike competitors that use friction drive system with rollers or belts. The work cell is kept cleaner with built-in cutting slag pans and using a through-hole chuck design to safely and effectively remove smoke.

ShopPipe™ Specifications

• Maximum pipe diameter: 6 inches with 1/2 inch wall
• Maximum pipe length: 8 foot
• Number of supports in base model: 3
• Maximum weight capacity: 150 lbs per support (max total weight 600 lbs)
• Drive means: Direct drive with chuck
• Fume collector connection point: Yes
• Spark and slag pan: Yes
• Spark arrestor: Yes

• Equipment Options

  Pneumatic Scribe Assembly: Manual swappable with plasma torch, Manual On/Off, Marking software included with option, Initial height sensing Oxy-Fuel Torch: Koike cutting tips are one of the most technically advanced of its kind. By providing safety and accuracy, they save money in time and gas cost. There is also a Lifetime warranty when using genuine Koike cutting tips and 2 inch maximum for your material thickness. Downdraft Plenum Table is mounted to the backside of the cutting table. It includes one or two 12 inch diameter cut outs for the customer supplied fume collector (not available with the oxy-fuel option). ▪ Automatic Lead-in on Restart
  ▪ Dynamic THC On/Off
  ▪ Progress meter
  ▪ Move to point in viewport
  ▪ Rip cutting
  ▪ Smart Touch Off
  ▪ Shape library
  ▪ Bridge entities tool
  ▪ Shape welding tool
  ▪ Multi layer color image import
  ▪ Import of parts from external files
  ▪ Multi-sheet and fill sheet trueshape nesting
  ▪ Corner looping
  ▪ Advanced lead-in, lead-out editing
  ▪ Animated 3D Cutting Simulation
  ▪ Advanced small hole processing
