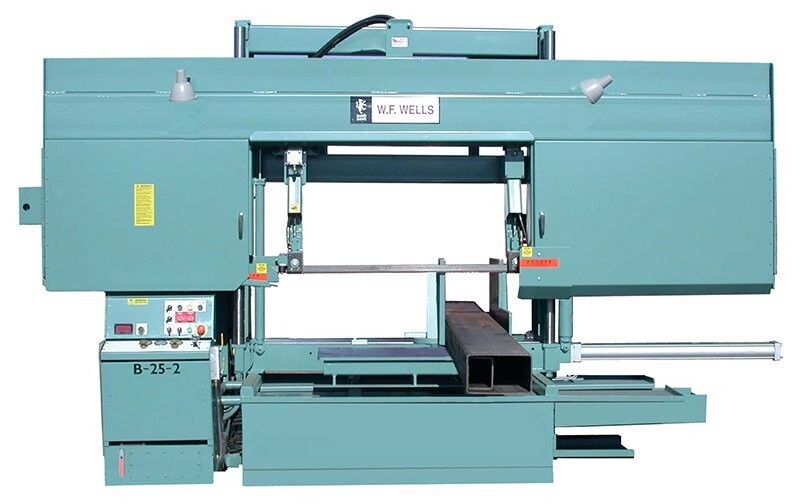

WF Wells B-25-2

Machine Specifications

• Capacity: Rectangular at 90° 25″ High x 40″ Wide, Round 25.5″
• Rectangular at 45° 25″ High X 24″ Wide
• Weight Capacity: 15,000 lbs
• Blade Speed: 60-500 SFPM
• Blade Size: 1½” X .050″ X 26′-6″
• Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
• Blade Tension: Hydraulic
• Bandwheel Size: 26″
• Vise: Hydraulic
• Blade Drive: 10 HP, AC Vector Drive
• Sawing Force: 0-1,000 lbs
• Coolant Capacity: 15 Gallons
• Hydraulic Capacity: 20 Gallons
• Hydraulic Drive: 5 HP Motor
• Work Height: 28″
• Outfeed Table: 24″ X 40″
• Vise Jaw Height: 17”
• Blade Break/Stall Switch
• Hydraulic Positioned Guide Arm
• Hydraulic Powered Blade Brush
• Electronic Door Interlocks
• Blade Tension Indicator
• Shipping Weight: 6,600 lbs
• Electrics: Wired to NFPA 79 Machine Tool Standards
• Machine Dimensions: 170” Length x 55″ Width x 100″ Height

WF Wells B-25-2 Spec Sheet
